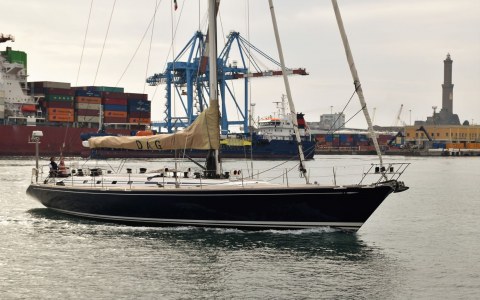

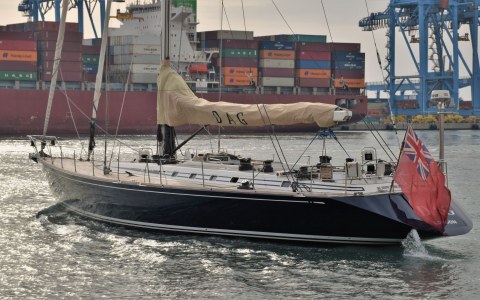

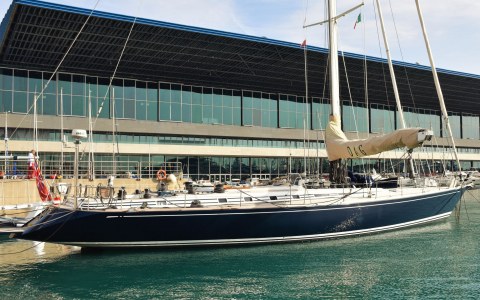

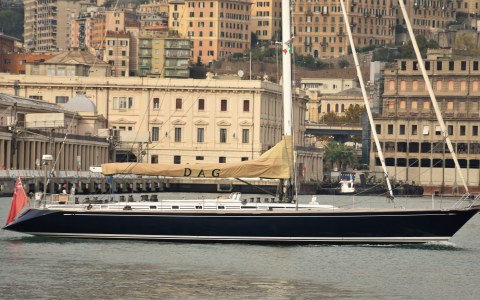

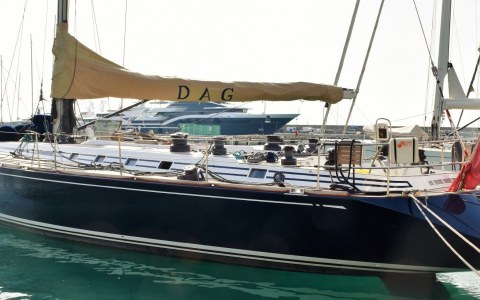

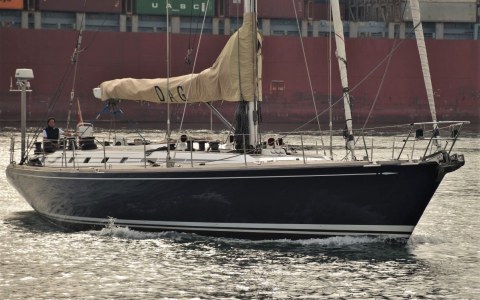

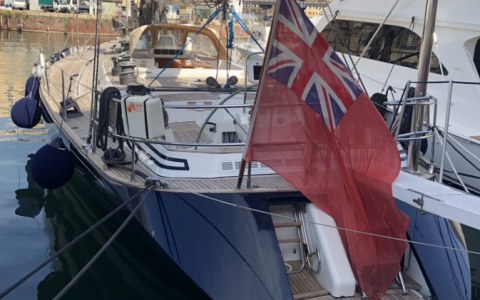

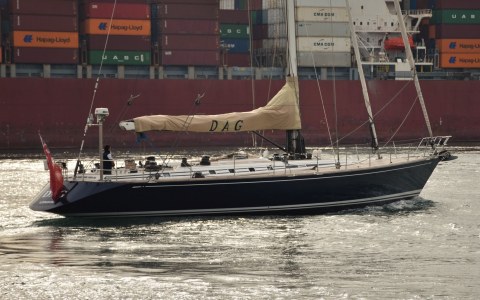

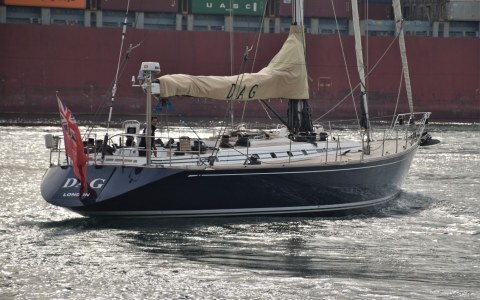

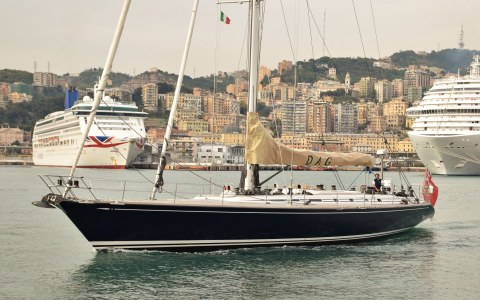

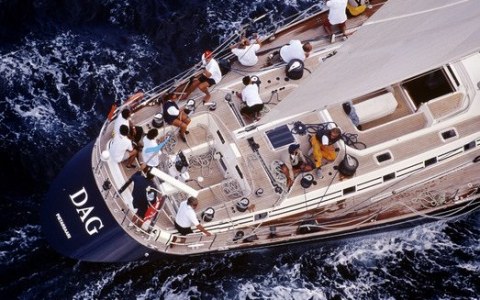

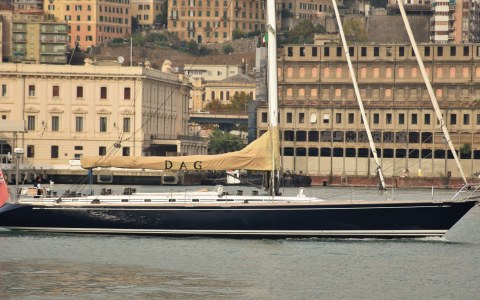

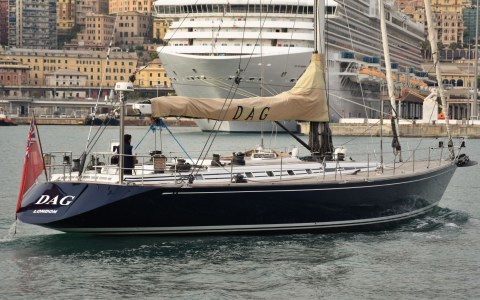

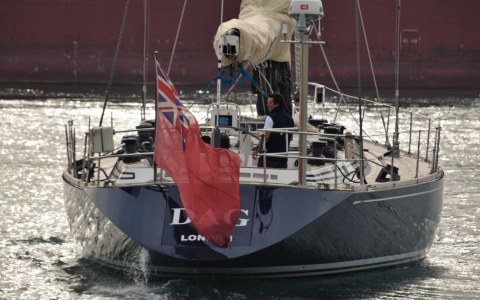

Swan 77/004 „DAG“ was launched in June 1994. The yacht is privately owned. It is run and Maintained by a professional crew.

Deck equipment
Bow stainless steel pulpit with sit and gate
Stainless steel stanchions with port and starboard gates
Stern radar and tv antennas stainless steel pole
6 ballards (2 stern, 2 amidship, 2 bow)
2 stern openable fairleads
8 bulwark fairleads

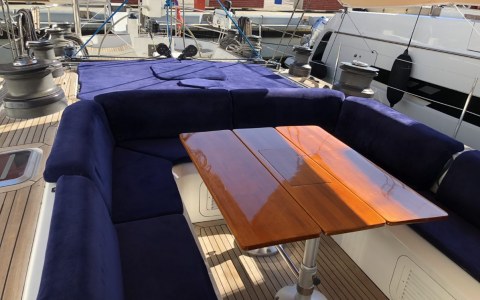

Fore cockpit folding table
Dodger
Fore cockpit cushions
Aft cockpit cushions

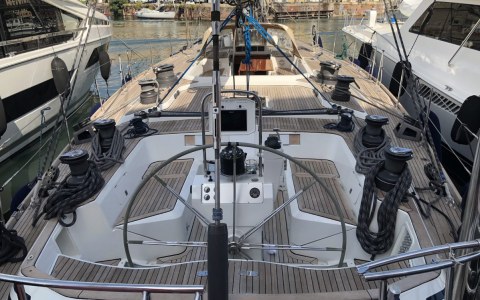

Wheel cockpit
Instrument dashbord with plotter/radar display, autopilot control, bow thruster control, electronic engine trottle, engine display, hydraulic fore furlers controls
70 inches wheel elk leather covered
GRP rudder filled with foam, hardened rudder shaft
Stern ventilated gas locker
Hydraulic transom hatch

External instruments
4 B&G H2000 displays above the companionuccio di entrata
Simrad NSE 8, B&G FFD plotter/radar
Electric panel

Standing rigging
Brands: Harken, Spinlock, Nautor.
Genoa jib and staysail sheet stainless steel Harken rails
Main sail Harken rail
3 + 3 + 2 reef Spinlock jammers

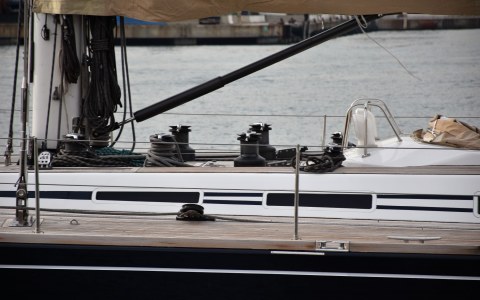

Winches
2 mainsail Harken 42.2 ST
2 downhaul Harken 53.2 ST
4 reef Harken 66.2 ST

Hydraulics
Harken power pack 8.12 unit
2 running backstays Harken 66,2 ST winches
2 mainsail sheets Harken 66.3 ST winches
2 genaojibs Harken 980.3 ST winches
2 gennaker /spinnaker Harken 1120 ST winches
2 halyard Harken 66.3 ST winches
1 hydraulic transom haych control
2 fore sails hydraulic Reckmann furlers (overhauled in May 2015)
Hydraulic power from generator’s PTO
1 x Lewmar 300S bow thruster
1 Navtec control unit
1 mainsail base hydraulic Navtec piston
1 backstay hydraulic Navtec piston
1 forestay hydraulic Navtec piston
1 vang

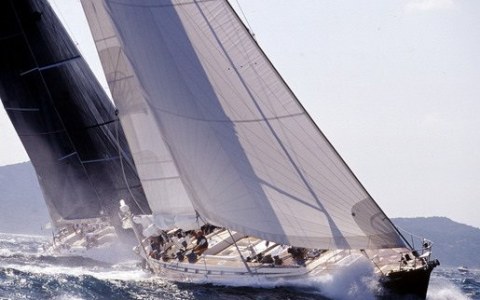

Sails (cutter rig)
1 dacron Elvtröm full batten mainsail
1 dacron Elvtröm jib
1 dacron Elvtröm staysail
1 gennaker Elvtröm with sock
1 dacron Elvtröm storm mainsail

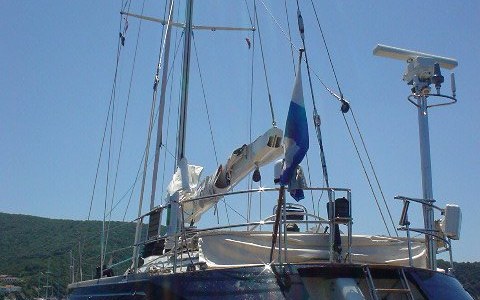

Rigging and mast
Carbon mast
Triple spreader with led lights
Separated storm mainsail Harken rail
Nitronic 50 stainless steel rod shrouds (replaced in May 2015)
Carbon boom

Engine
Cummins QSB6.7355HOI 355 hp (replaced in December 2020)
ZF trottle (replaced in December 2020)
Brunton 4 blades propeller (replaced in May 2021)

Generator
Onan MDKDV 19 kw (replaced in October 2022)

Fuel tankage
2 stainless steel tanks 870 liters each (1,740 litres total)

Fresh water
1,390 litres in 2 stainless steel tanks
SPECTRA 24 V watermaker (120/130 l/h)
2 24 V Jabsco fresh watre pumps
220V 100 liters boiler
Hot water also from main engine
Hot and fresh water shower on swimming platmorm and aft cockpit

Sea water plant
Deck washing and galley
2 waste water tanks with control and alarm displays
4 Vacuflush wc
1 manual Jabsco wc
2 Whale Titan manual bilge pums

Internal ventilation
Natural ventilation in all cabins
Fans in all toilets and galley
Air conditioning in owner cabin

Bilge pumps
2 electric submerged with alarm
1 bilge pumps in the fore bilge
2 Whale Titan emergency manual pumps
1 emergency manual pump in the chain locker

Refrigeration
1 sea wtare cooled Iceberg 220V group for refrigerator and freezer with double pump (1 spare)
1 Waeco Coolmatic 220V wine cellar
1 Icemaker

DC electric plant
Service batteries 24 V 800 Ah
Rdio batteries 24 V 400 Ah
Engine batteries 24 V 135 Ah
Generator battery 12 V 90 Ah

AC electric plant
Shore power 115 V 50 A 60 Hz tramite (with 6 kVA transformer)
Shore power 230 V 50 A 50 Hz tramite (with step up / step down 12 kVA transfromer)
3000 W 230 V 50 Hz MASTERVOLT inverter (installed in 2019)

Batteries charger
2 Mastervolt 24/75 220 V for servce batteries
1 Mastervolt 24/50 220 V 50 A for radio batteries
1 220 V for main engine
1 220 V for generator

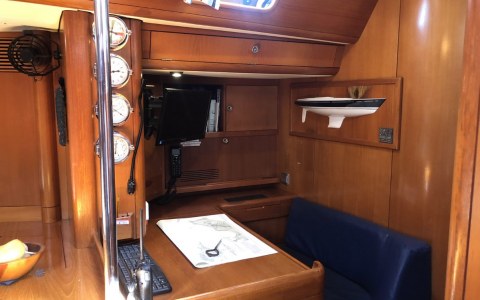

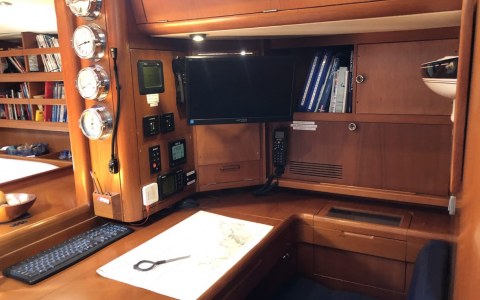

Navigation electronic equipment
B&G 2000 Hercules power unit
3 B&G GFD displays
4 B&G 20/20 displays
2 analogic displays
B&G Hercules Pilot
Barometer
Angle of helm display
B&G stanilized compass
B&G MHU wind station
b&G Chartplotter/Radar
4G B&G radar
B&G AIS

Computer
1 ASUS MINIVIVO pc with MaxSea software
HP 15’ monitor
EPSON WIFI Deskjet printer
Internet WIFI

Communications
2 B&G DSC VHF
1 Icom handy VHF
MC MURDO epirb

Entertainment
Flat screen LCD TV
Sony DVD/CD player with 4 loudspeakers in salon, 2 in central cockpit, 1 aft

Safety equipment
2 life raftszattere di salvataggio
1 JON BUOY
ADK 1000 BMC Medical kit

Appliances
Miele washing machine
Miele dryer
Bosh dish washer

I = 30,00 m

J = 9,10 m

P = 27,40 m

E = 9,10 m

Fore triangle = 136,5 m²

Main sail = 124,7 m²

100% jib = 136,5 m²

Spinnaker = 491 m2
