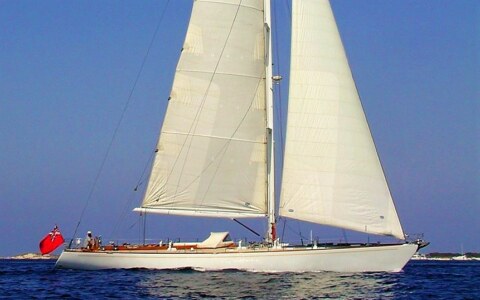

Quarta Santa Maria

“Quarta Santa Maria is also a characteristic boat, the only one that can be distinguished even from a distance”

SPECIFICATIONS

• Type of vessel: Sailing IMS maxi racer – cruiser

• Hull type: Mono hull

• Year: 1993

• Overall length: 25,40 m

• Waterline length: 20,50 m

• Maximum beam: 6,16 m

• Draught• : 2,85 m

• Full load displacement: 46.000 kg

• Sail area: 642 sqm

• Engine: Caterpillar 3208 TA 320 HP

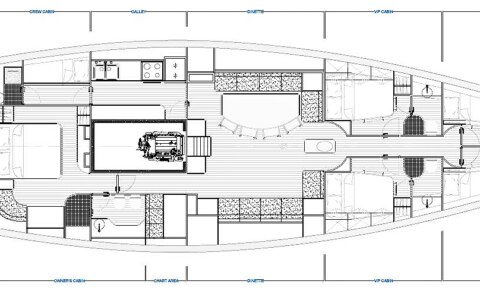

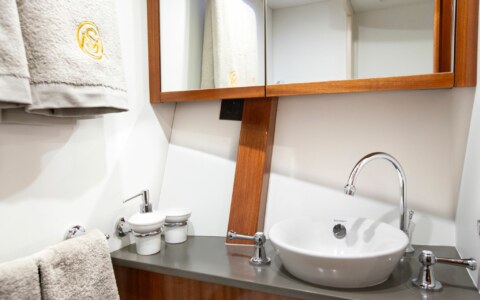

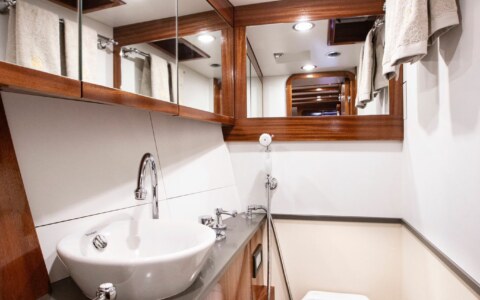

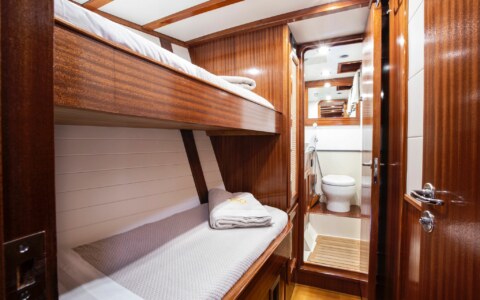

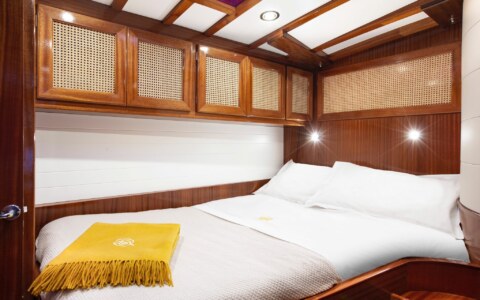

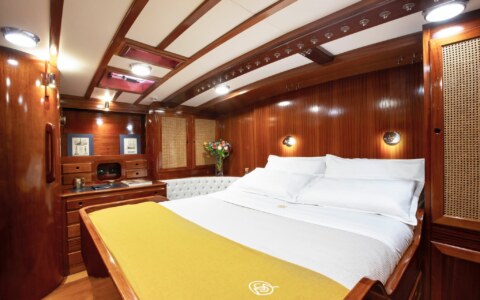

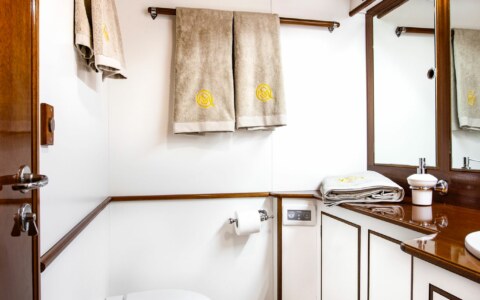

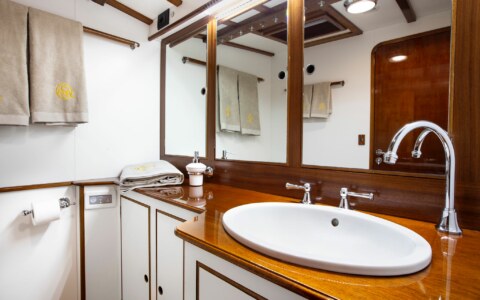

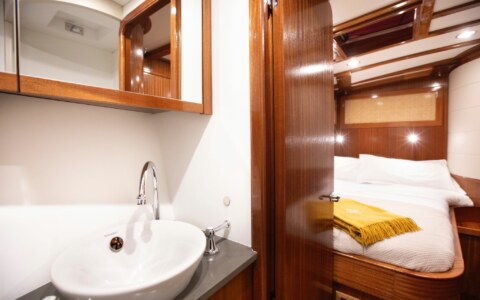

• Accomodation: 10 Guest in 5 cabins with ensuite bathrooms

• Crew: 3 in 2 cabins with ensuite bathroom

• Max speed: 11.0 kn

• Cruise speed: 10.0 kn

• Range: 1.500 n/M

• Builder: Cantieri Sangermani – Lavagna – Italy

• Naval Architect: Sparkman & Stephens – Newport – RI – USA

• Refit: 2020 – 2021 Cantieri Mostes – Genova Prà – Italy

• Interior Design: Lucio Micheletti & Partners

• Exterior Design: Lucio Micheletti & Partners

SAFETY AND TOYS

• Fixed + handheld B&G 16ʺ Integrated Chart plotter

• 4G radar

• Autopilot

• GPS

• AIS

• EPIRB (Emergency Position-Indicating Radio Beacon)

• Depth sounder, log, wind direction and strength, air and water temperature • Fixed + handheld VHF radio with DSC

• Life jackets and 2 offshore category life rafts for total of 16 people

• Automatic fire extinguishing system in engine room

• Fire extinguishers in all cabins and saloon

• Fire detectors in all compartments

TECHNICAL EQUIPMENT

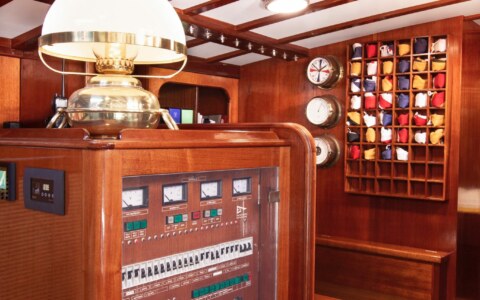

• Onboard electric system 24 V/230 V and USB doors in all compartments

• Electric power 18 kVA generator

• Air conditioning Climma in all compartments including crew cabins.

• Connectivity 4G+WiFi booster

• TV Samsung the frame 32”

• Marine Hi fi Fusion Apollo MS-RA 770 Touchscreen, 4 Zone DSP

• Mechanic steering system with autopilot

• On-board desalination capacity 160 l/h

• Still and sparkling water purifier

• Wastewater 2 x 220 l tanks.

• Fresh water 2 x 800 l tanks.

• Washing machine/dryer 13 kg

• 12 covered dishwashing machine

• Engines – Caterpillar 3208 V 8 four stroke 320 HP

• Fuel capacity 2 x 1.300 l tanks

• 3 fridges total capacity 500 l

AMENITIES & TOYS

• 85 sqm teak flush deck

• Crew cockpit with spry hood

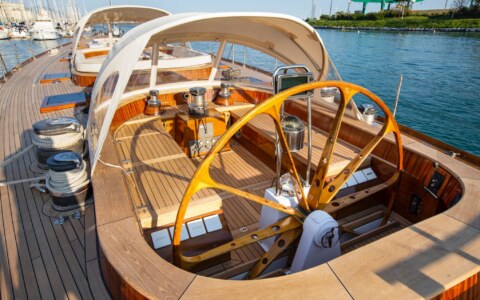

• Guest cockpit with ( approx 12 sqm) with 2,5 m long table, spry hood and Bimini top

• Folding transom with bath ladder

• 10 sunbeds with headrest

• 4.60 m AB inflatable tender (11person capacity) with Honda outboard engine 40/60 hp

• 1 wakeboard

• 2 water ski

• Two seats towable

• 3 sea scooters.

• 2 deep fishing rods.

• Full set of snorkeling gear and fins
